10×20 Canopy Tent: Commercial Specs, Weight and Layout

“A 10×10 felt huge in the showroom. On show day it was a phone booth with a queue.” That is the moment most buyers start searching for a 10×20 canopy tent: the moment a second table, a third staff member and a line of customers meet 100 square feet of floor. Doubling to 200 sq ft (18.6 sq m) changes the economics of a booth, and it changes the engineering questions too: frame class, pack weight, ballast and layout all scale. This guide covers the specs that matter at 10×20, honest weights and wind numbers, layouts that pull traffic, and the order path from free mockup to QC video. Scope first: this is the event-grade pop-up and pagoda class up to 6×6 m equivalents; clear-span marquee halls are a different category we do not build.

What 10×20 Actually Gives You

A 10×20 canopy is a 3×6 m footprint with about 18.6 sq m of shade, room for 15-20 people standing, or a working layout of two to three six-foot tables, a backwall and a consult corner. The math that sells the size: two zones instead of one. Display and queue live under the front half; storage, stock and staff live under the back half, out of the customer sightline. Food vendors run the back half as prep; dealerships run it as the negotiation table.

Height matters as much as floor. Typical kits offer three eave settings around 2.0-2.4 m with peak heights near 2.7-3.0 m, tall enough for a standing crowd and standard retail racks. If your venue certifies fire documents, order the FR fabric option in writing at quote stage.

Frame Classes and Pack Weights

Public listings across the market put complete 10×20 kits between 66 and 124 lb (30-56 kg), and the spread is the frame class, not the fabric. The table below is how distributors explain the difference to their customers.

Frame class	Typical tube	Complete kit weight	Suits
Light steel	about 28-32mm	30-35 kg (66-77 lb)	occasional events, tight budgets
Full-truss steel	32-43mm reinforced	40-48 kg (88-106 lb)	weekly vendors, windy sites
Pro aluminum	37-43mm octagonal	46-56 kg (101-124 lb)	rental fleets, daily programs

Leg profile is the quiet differentiator: hexagonal and octagonal legs resist torsion better than round tubes of the same weight, which is why pro fleets pay for the shape. Joint hardware follows the same logic; reinforced metal joints outlast plastic connectors by years in rental service.

Transport and Storage Reality

The kit breaks into a frame bag and one or two top bags, each 1.5-1.7 m long. A large SUV swallows the set; a van takes four kits with room for tables. Two people lift every piece, and the pro aluminum frame bag is a two-hand carry at 20-28 kg, not a one-hand toss. Storage wants the same discipline as transport: dry tops, closed bags, and the spare-parts box (stakes, straps, spare feet) living inside the frame bag where it cannot be left behind.

Fabric and Print at 10×20

The standard top is 600D PU-coated polyester printed edge to edge by dye-sublimation, with Pantone matching and the realistic 90-95% color tolerance stated up front. Heavy-duty programs step to 1000D or welded PVC; the trade-offs live in our 1000D vs 600D fabric guide. At 10×20 the valance becomes prime advertising space, so design it: brand color on the valance reads from farther away than anything printed on the roof plane.

Setup: Crew, Time and Sequence

Two crew set a 10×20 in 15-25 minutes with practice; one person can do it in 30-45 minutes on a calm day, though the last leg extension is where solo setups pinch. The sequence that hits those times:

1. Unroll the frame at half height with the feet on their marks, roughly one leg-width inside the final line.

2. Fit the top at half height, velcros and corners seated before anything rises.

3. Extend legs to the middle setting and lock the joints; do not full-extend yet.

4. Raise to working height two legs at a time, locking each collar with a pull test.

5. Square the frame to the pitch line, then fit walls, backwall or gutters.

6. Ballast per the chart and photograph the setup for the event file.

Ballast for a 10×20

Bigger footprint, bigger sail: every 10×20 chart starts one band above the 10×10 baseline. Public guidance lands here; local rules override.

Condition, 10×20 canopy	Weight per leg
Calm weather, hard standing	30-50 lb (14-23 kg)
10-15 mph wind	40-50 lb (18-23 kg)
15-25 mph wind	60-75 lb (27-34 kg) plus straps
Grass with stakes	15-25 lb (7-11 kg) plus stakes
Sand or beach	60 lb (27 kg) or more per leg

Straps to the frame top are what make those numbers work; our canopy weights guide covers plates, sandbags and water ballast with the same logic per surface.

Layouts That Sell at 10×20

The footprint rewards planning more than furniture budgets. Four layouts cover most programs.

• Front counter, open corners: queue flows in one side, out the other; stock lives at the back wall.

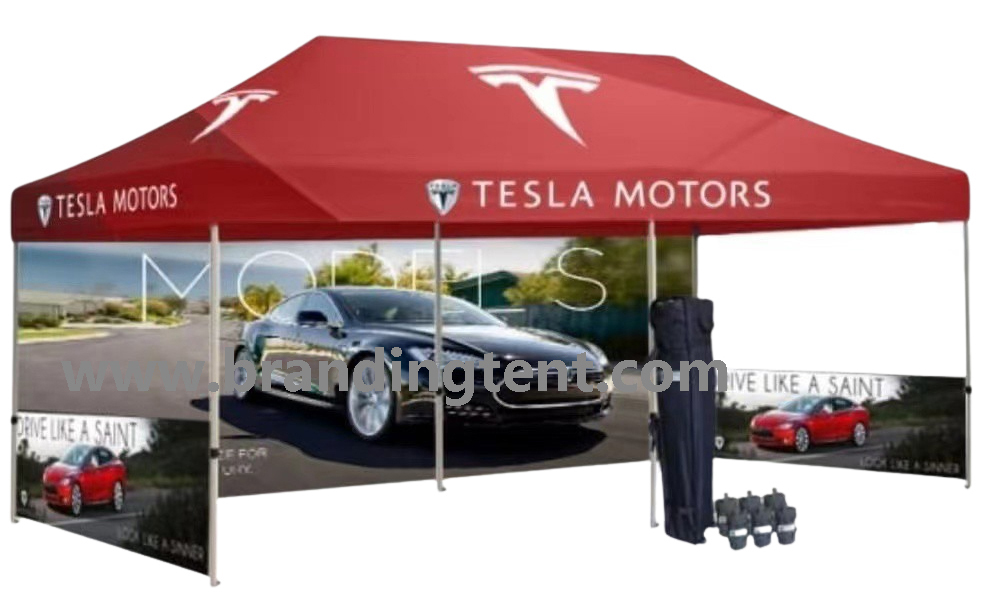

• Walled showroom: backwall plus two window walls turns the back half into a meeting room.
• Double kit with gutter: two 10x20s bridge into a 6×12 m pavilion for the price of one gutter kit.
• F&B row unit: service window on the long side, prep behind the backwall, ballast hidden in line.

Whichever layout runs, keep the sightline from the aisle to the backwall clear; a blocked view wastes the depth you paid for. The tradeshow display range supplies backwalls and counters that scale the same artwork story indoors.

10×20 or Two 10x10s?

One 10×20 wins on cost per covered square meter, weather sealing (one roof, no valley), setup time and mid-span legs: two frames become one clear floor. Two 10x10s win when the program splits across entrances, forms an L around a corner pitch, or needs to lend a unit to a second team the same weekend. Fleets often buy the pair with a gutter kit, which keeps both options open for the price of one connector line.

Who Buys 10×20 and Why

The size pulls four buyer types. Farmers market and street-fair vendors in the United States and Canada want the queue depth. Trade show exhibitors use it as the outdoor twin of an indoor booth program. Car dealership teams run launch weekends where the open sides face the lot. Festival and event organizers spec it for merch rows and F&B lines, and distributors across Latin America list carpas 3×6 as a catalog anchor. Each buys for the same reason: the second zone converts browsers into conversations.

Order Path, De-Risked

The 10×20 is where file preparation pays its biggest dividend, because the print area doubles and so does the cost of a bad file.

1. Free mockup. Send logo and scenario; we return a to-scale layout with panel placement before any quote is final.

2. Written spec. Frame class, tube profile, fabric denier, print process and ballast chart, itemized.

3. Sample in 3-7 working days. Approved sample becomes the batch contract.

4. Production photos and full-tent QC video. Every unit filmed pitched before packing.

5. Export packing and documents. Roller bags in cartons, packing list, invoice, fire papers if ordered.

Terms are T/T 30/70: deposit to start, balance against QC evidence. Bulk production runs 7-15 days and Low MOQ accepted with wholesale pricing from 5+ pieces.

When a 10×20 Is Not Worth It

Solo traders with a small car should feel the honest pull of a 10×10 or 10×15: the 10×20 kit only saves money if two people and a suitable vehicle actually show up. Indoor exhibitors in halls with low truss or strict fire rules often fit a display system better than a canopy. And venues that cap footprint at 10×10 make the decision for you. Buy the bigger size when the second zone has a job; otherwise the smaller kit plus better ballast is the sharper order.

Feature, Advantage, Benefit: The 10×20 Case in One Table

Feature (spec)	Advantage (what it does)	Benefit (what you get)
18.6 sq m footprint	two working zones under one roof	queue and consult stop fighting
37-43mm octagonal legs	torsion stiffness at event winds	a frame that survives the season
Full-bleed dye-sub print	brand wraps roof, valance and walls	visible from the far side of the field
Gutter-connectable roofs	two kits become one pavilion	scale up per event, not per year
30-56 kg kit weight	fits a large SUV in two bags	no freight day just to attend Saturday

What a 10×20 Is Called in Different Markets

Same product, five labels. United States buyers search 10×20 canopy tent or 10×20 pop up canopy. United Kingdom hirers ask for a 3x6m pop-up gazebo. Australian suppliers list it as a 3×6 folding marquee. German buyers order a 3×6 Faltpavillon and expect the fire class in the documents, while French crews ask for a barnum 3×6 and Latin American buyers price carpas 3×6 con impresion. The factory spec sheet behind every name is the one printed above.

Mistakes Buyers Make at 10×20

• Buying before measuring the pitch: the footprint plus guy lines needs the full 3×6 plus margins.
• Ignoring the bag weight: 40-56 kg kits move on two people and a trolley, or they stay in the van.
• No ballast plan: the frame class means nothing if the chart was never bought.
• Sending 72 dpi artwork: doubled print area doubles the visibility of a soft logo.
• Forgetting wall wind load: walls step the ballast chart a band; order the weights with the walls.

Bottom Line

A 10×20 canopy tent converts a stall into a floor plan: 200 sq ft, two zones and a valance that advertises from across the field. Buy the frame class your calendar justifies, ballast one band above your 10×10 habit, print for the valance as hard as for the roof, and get every line in writing before the deposit. Send us your pitch size, event calendar and logo: we will return the layout, the written spec and factory-direct pricing, with a reply inside 1 hour, 24×7.
